ANGLED OSCILLATING  STEAM ENGINE

By Julius de Waal

Another steam engine from Julius which requires no castings and should not present too many difficulties although, like any oscillating engine, must be made with precision. It is a neat, compact little engine for demonstrations and can be made attractive to adorn a desk top.

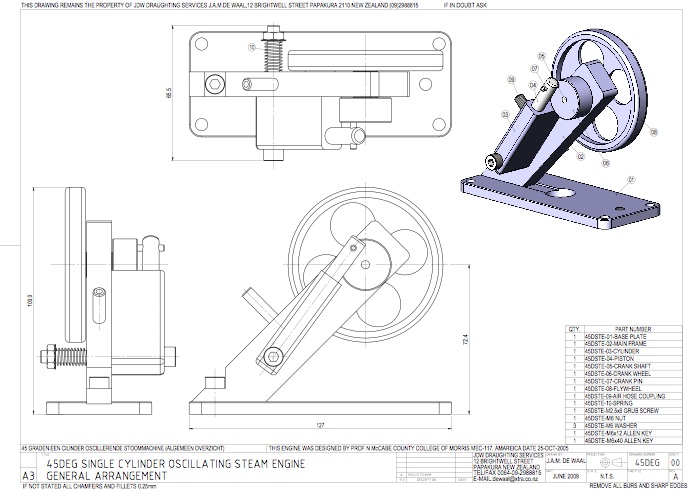

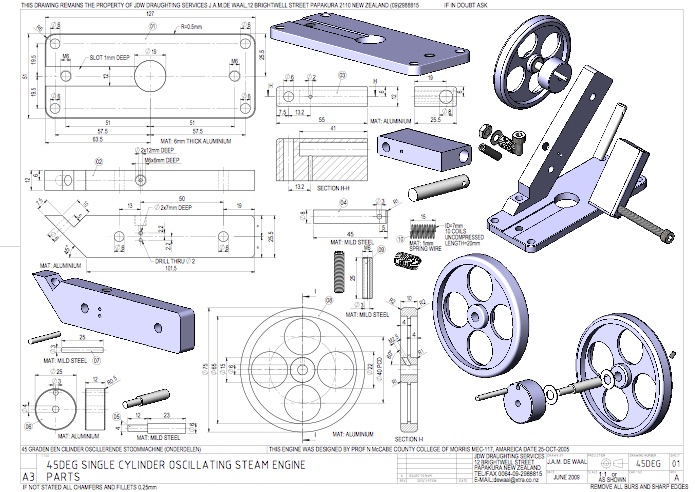

Click on drawings to download. For personal use only.
