NEW TOOLING FROM CHRONOS

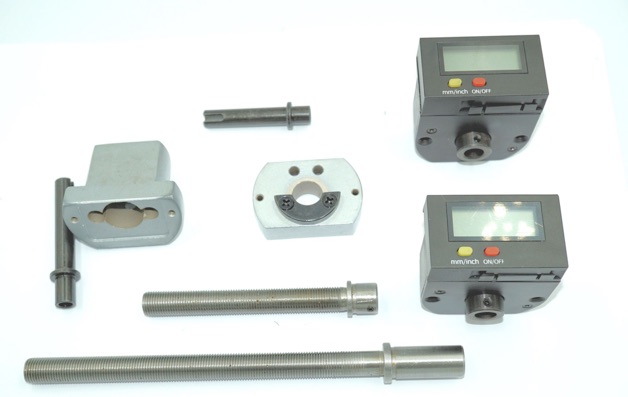

Chronos has introduced a range of new products including new, improved digital readout kits for most mini lathes including C2, C3 SC2, CL300 and so on. These can be zeroed in any position and read metric or imperial.

Price including VAT andUK delivery is £123.36

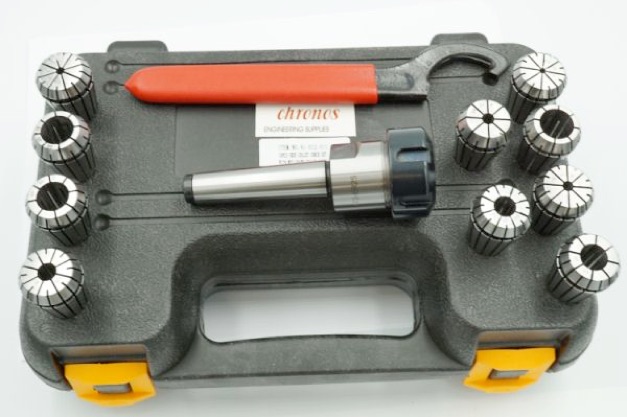

Chronos has also added new sets of ER collets. Shown above is one with a 2MT holder.

Includes 1 collet chuck,1 clamping nut, and set of 10 ER25 collets and spanner

Collet Sizes - 3,4,5,6,8,10,12,14,15,16 mm

Collet chuck tapped M10 for a drawbar

Packed in a plastic case

Suitable for milling and drilling applications.

Accuracy:0.015mm

The 2MT set is £54.66 inc VAT and UK mainland delivery.

The 3MT set is the same price, as is an INT30 set.

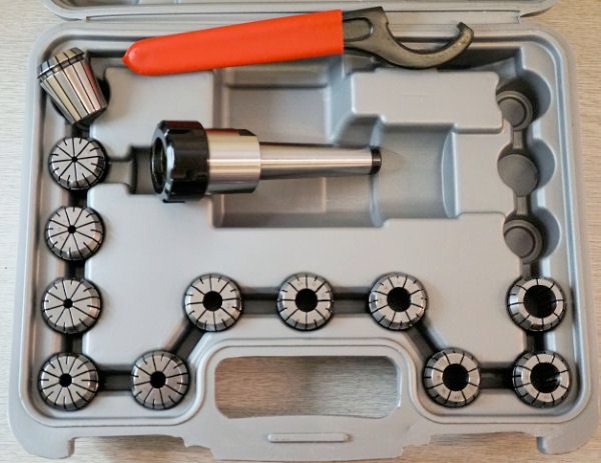

These ER 32 sets are also available.

Includes collet chuck, clamping nut, set of 12 ER32 collets and  spanner

Collet Sizes - 3,4,5,6,8,10,12,14,15,16,18,20 mm

Collet chuck tapped M12 for a drawbar

Packed in a plastic case

Suitable for milling and drilling applications.

Accuracy:0.015mm

Available with MT3 or R8 holder they are £67.20 inc VAT and mainland UK delivery.

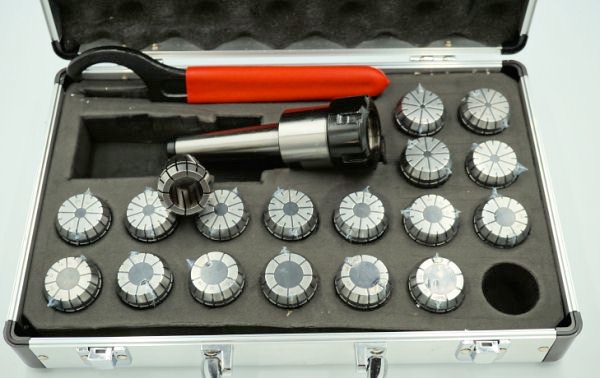

This larger set with an MT3  holder includes:

collet chuck, clamping nut, plus set of 18 ER32 collets and spanner

Collet Sizes - 3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20

Collet chuck tapped M12 for a drawbar

Packed in an Aluminium case

Suitable for milling and drilling applications.

Accuracy:0.015mm

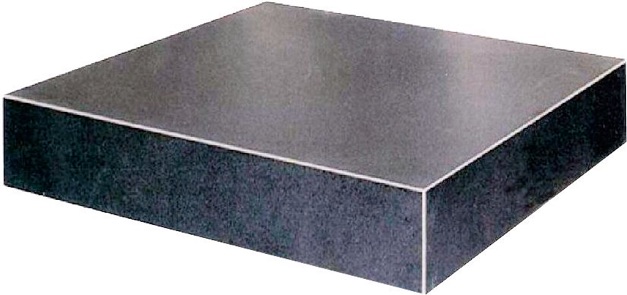

A new series of granite surface plates is available. They feature:

Grade '00' workshop granite plate

Good temperature stability

Resistant to corrosion

Nonmagnetic

Distortion free

Excellent surface for accurate marking out


Smallest is 300 x 300 x 70mm and costs £51.08 including VAT and mainland UK delivery.

Other sizes are 400 x 250 x 80mm, 400 x 400 x 100mm, and 450 x 450 x 100mm.

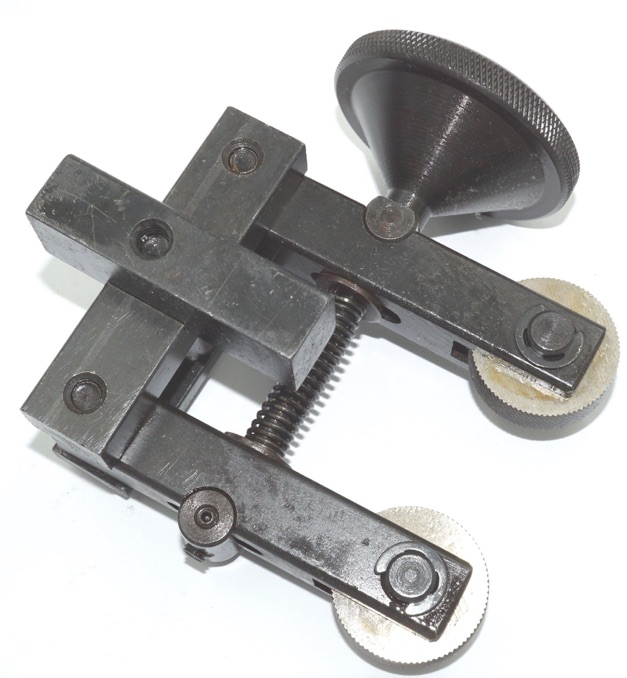

Another tool for the mini lathe user is a 12mm shank clamp type knurling tool which fits any 12mm lathe tool post and is positioned so the knurling clamp above and below the centre of the work - better than pushing against the work !

The mechanism is self-centring.


Knurling Wheel Diameter: 26mm.

Maximum Knurling Diameter: 25mm.

Fitted with Medium Diamond Pattern Knurls

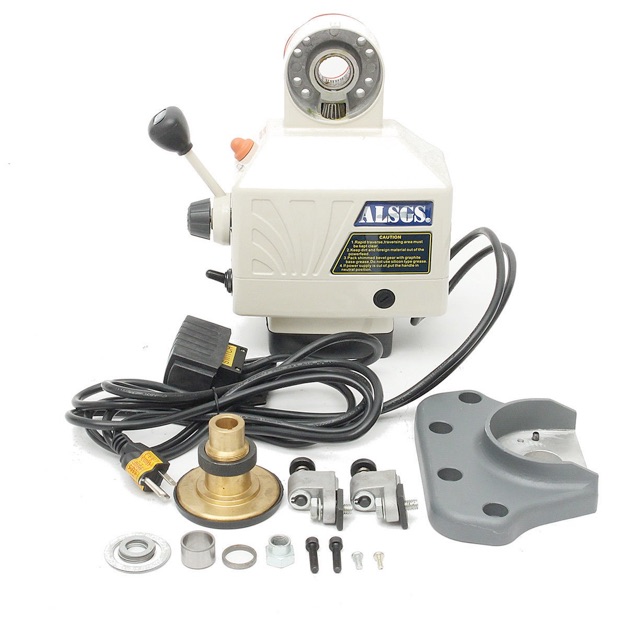

For the larger workshop, these power table feeders are easily fitted to many milling machines including Bridgeports etc. Both left and right directional feed are possible and the units incorporate an overload cut out and reset control. The limit switches are fully adjustable to control the feed travel.


Specifications

Model SCT-AL510SX

R.P.M 0-200

Max. Torque 650 in/lb

Voltage 240v.



Features

Functions with low noise, large torque, and high speed, Easy convenient installation

and flexible operation,.

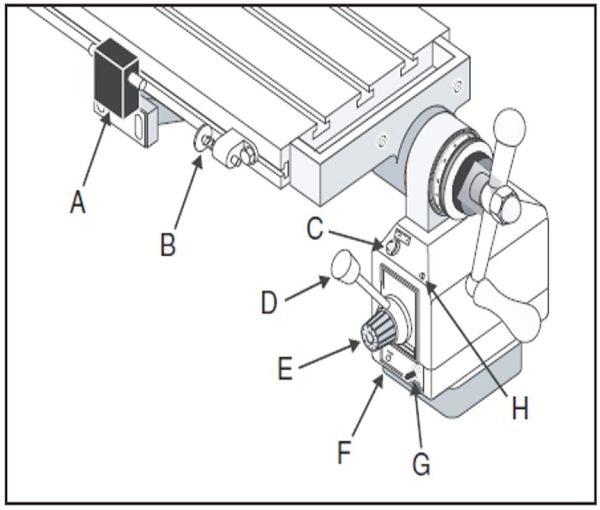

Functional Overview

1.Model SCT-AL510SX

This power feed is designed to install on the right side of a knee mill table to provide powered longitudinal movement of the table.



A. Limit Switch: Stops powered table movement when either limit stop presses a plunger on the switch.


B. Limit Stop: Activates the limit switch. Secure these devices along the table to set the range

of movement.


C. Rapid Movement Button: Moves the table at the maximum speed in the direction selected.


D. Direction Lever: Starts, reverses, and stops longitudinal table movement.


E. Speed Dial: Controls the speed that the table moves—turn the dial clockwise to increase

the speed.


F. Reset Button: When a current over 3.5 amps passes through the unit for more than 10 seconds, the internal circuit switch will cut the power to the unit. Investigate and resolve any problems, then use this button to reset the internal circuit switch.


G. ON/OFF Switch: The master power switch for the power feed.


H. Power Lamp: Lights when the power feed is turned ON.
