REVERSING MARINE

STEAM ENGINE

By Julius de Waal

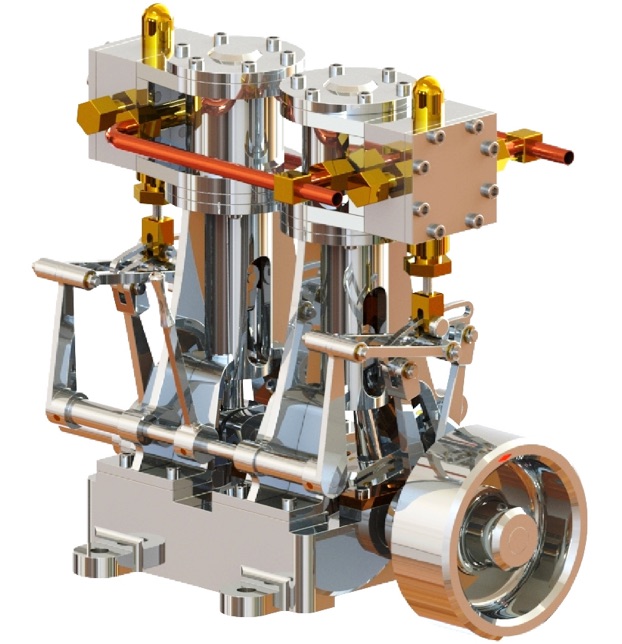

This attractive fabricated marine steam engine has reversing gear and two cylinders with the popular 26mm bore size.

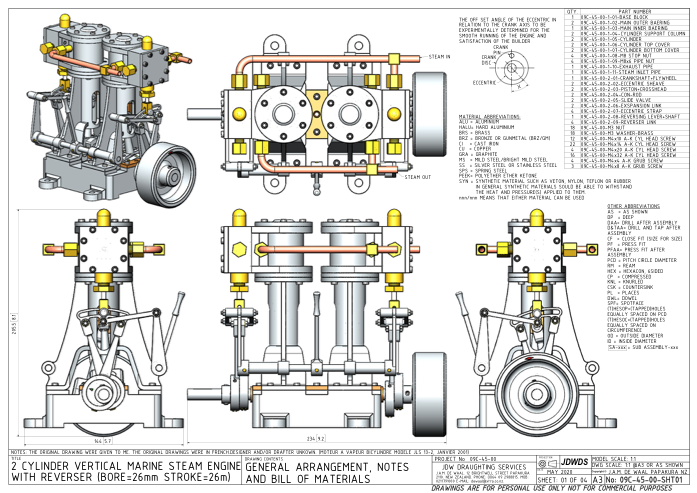

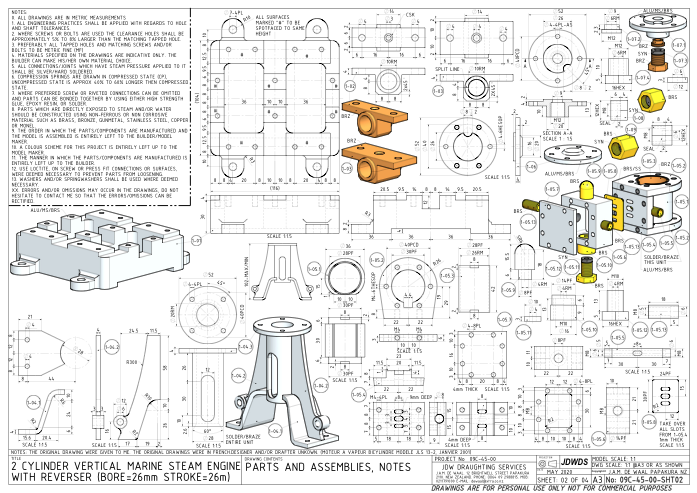

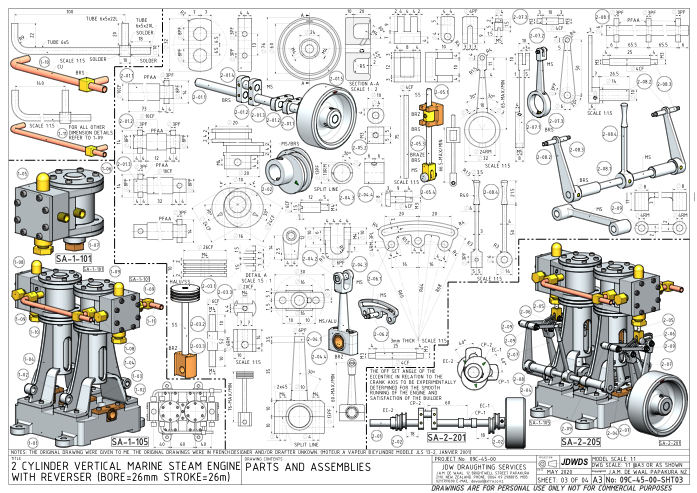

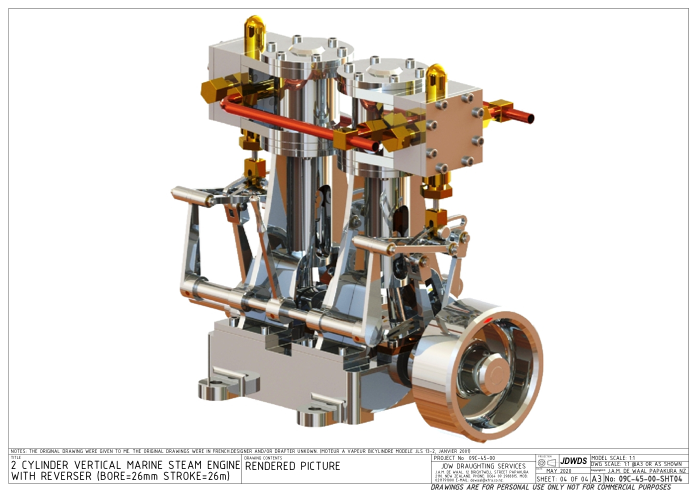

Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
