USS MONITOR ENGINE BUILD

Part 17 by Vince Cutajar

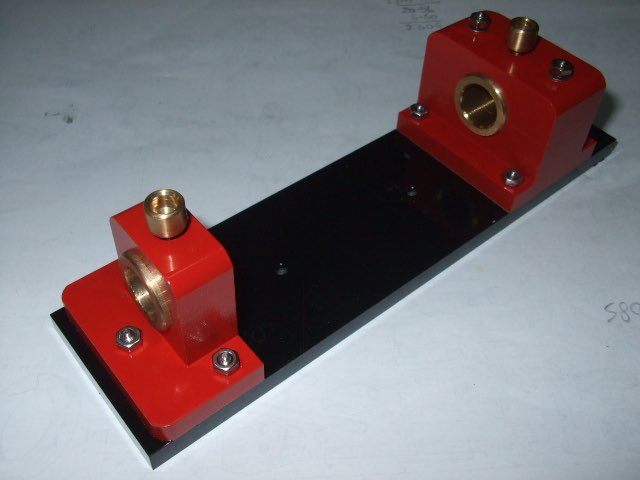

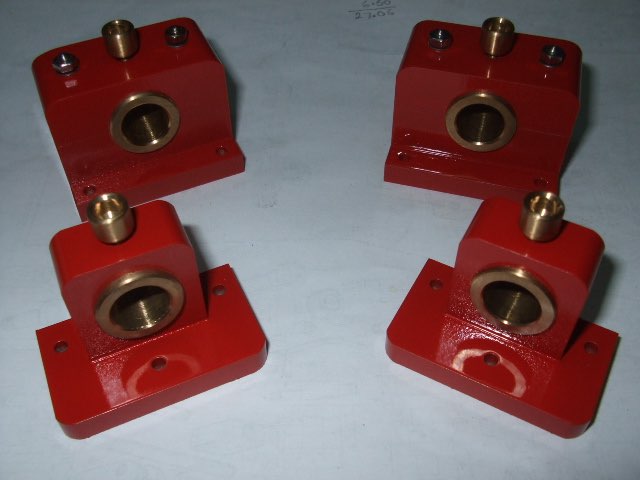

Finished the rocker arm bearings and the plate on which they are fixed.

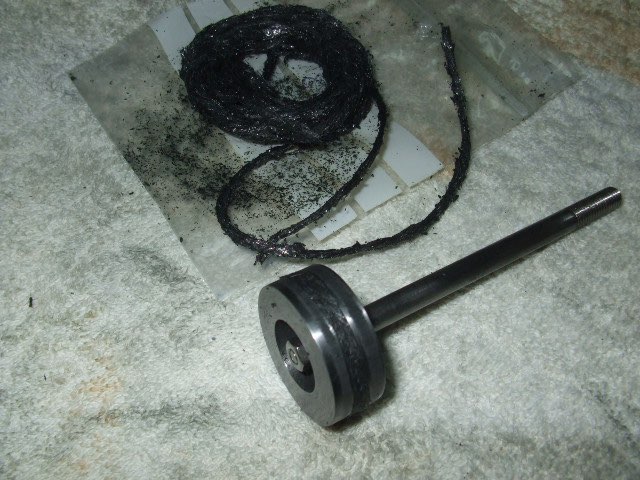

Filled the piston groove with graphite string.

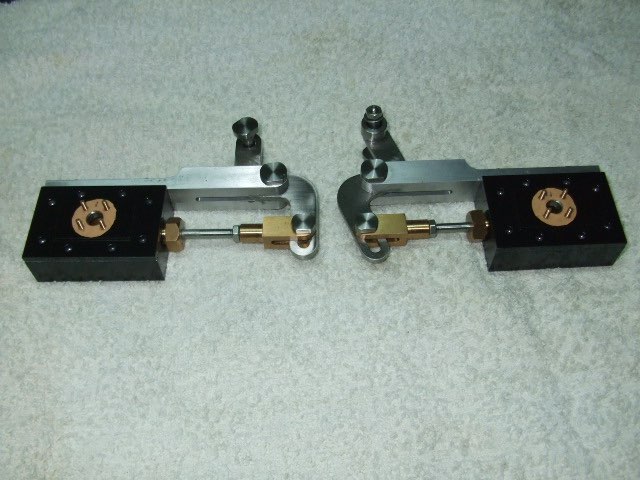

Fitted the steam chests to their linkages.

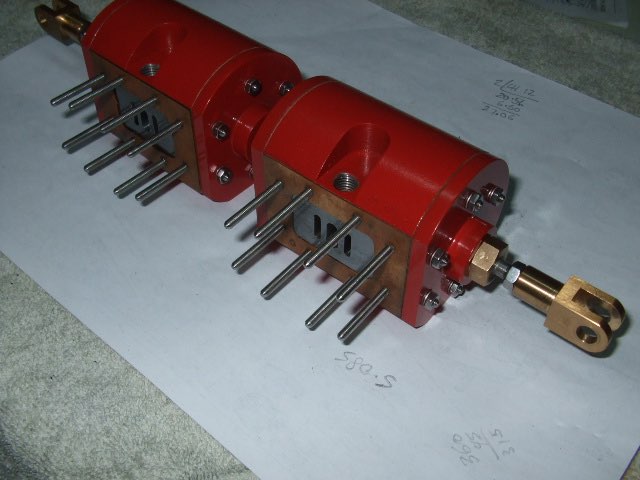

Assembled the cylinders with gaskets.

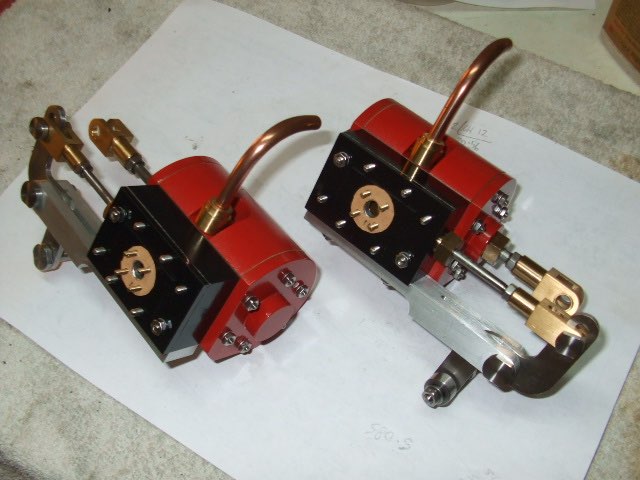

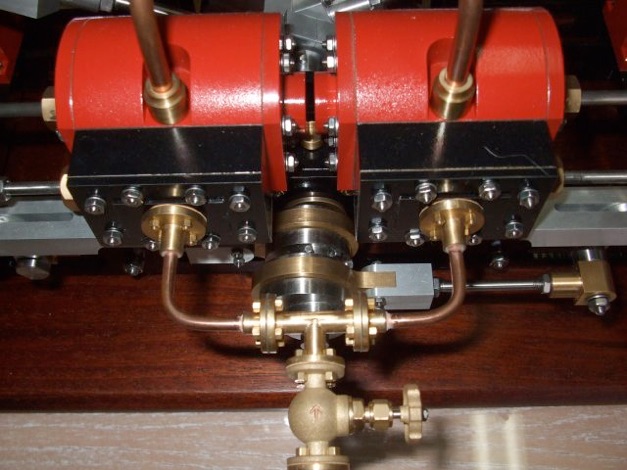

Joined together the steam chests to the cylinders not forgetting the gaskets of the steam chests.  Cylinders complete.

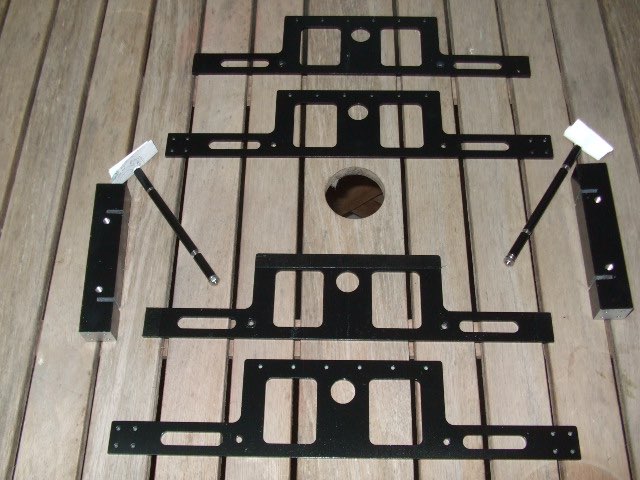

Finished painting all the parts that needed a lick of colour.

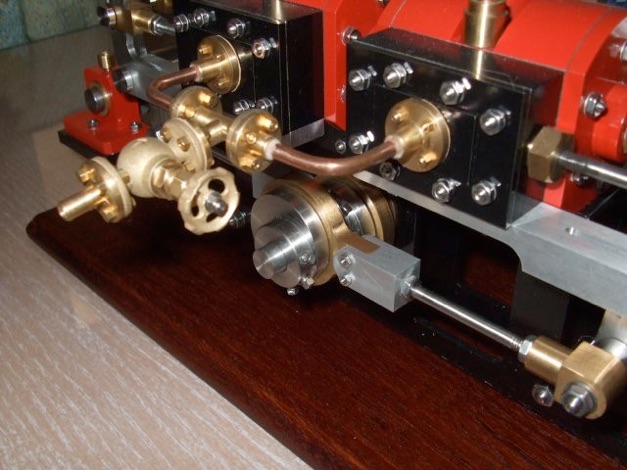

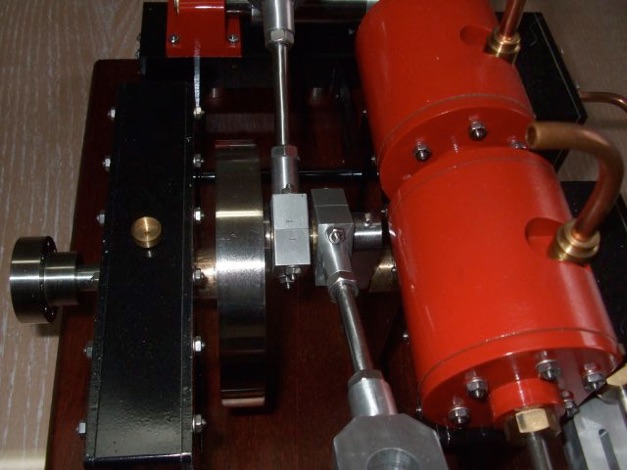

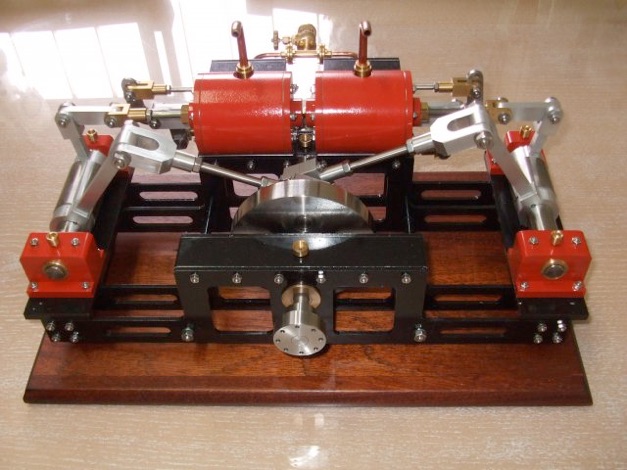

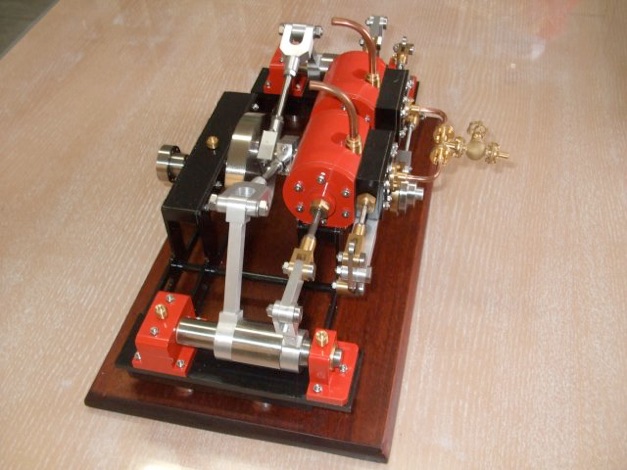

After nearly two years, I am calling it finished.
