MORE NEW TOOLING
SUMMER 2019

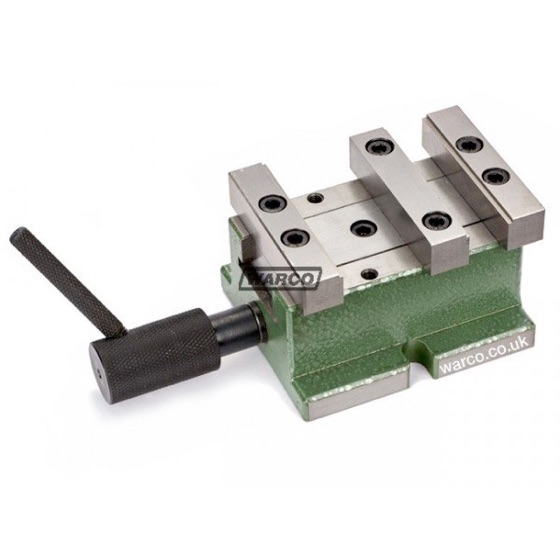

Based on the Warco DH-1 Vice, this new smaller version is for the model engineer. The design enables a large jaw opening capacity relative to the overall length. A precision vice which can hold a work piece equivalent to the length of the vice.

With the smaller footprint the Warco DH-3 is at home on smaller machines as found in the home workshop.

British patented design.

Manufactured in high grade alloy cast iron.

Accuracy, squareness and parallelism 0.0005" - 0.01mm

Top rebate to jaws


Dimensions

  1. Jaw opening 0 - 68mm

  2. Jaw height 16mm

  3. Jaw width 73mm

  4. Base 100 x 87mm

  5. Height 65mm

  6. Overall length excluding handle 115mm

  7. Weight 3kg

£98.00 Inc. VAT

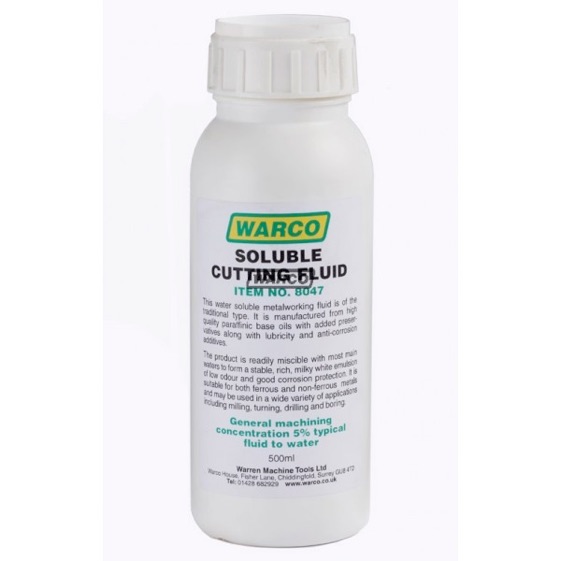

Supercut is a water soluble metalworking fluid of the traditional type. It is manufactured from high quality paraffinic base oils with added preservatives along with lubricity and anti-corrosion additives.

The product is readily miscible with most mains water to form a stable, rich, milky white emulsion of low odour and good corrosion protection.

Applications

Suitable for both ferrous and non-ferrous metals.

Can be used in a wide variety of application including milling, turning, drilling and boring.

General machining typical concentration - 5%.

Volume - 500ml.

£7.15 Inc. VAT


Warco Indexable Boring Bar for Lathes - 3 Piece Set

Boxed set with selection metal boring tools With carbide titanium nitride (TIN) coating for long lasting use.

Presented in quality aluminium case with moulded insert to accommodate individual tools. Supplied with torx tool for tip replacing.

All new design includes 3 x boring bars with tips.

Choice of different sizes.

£52.50 Inc. VAT

Other sets available.

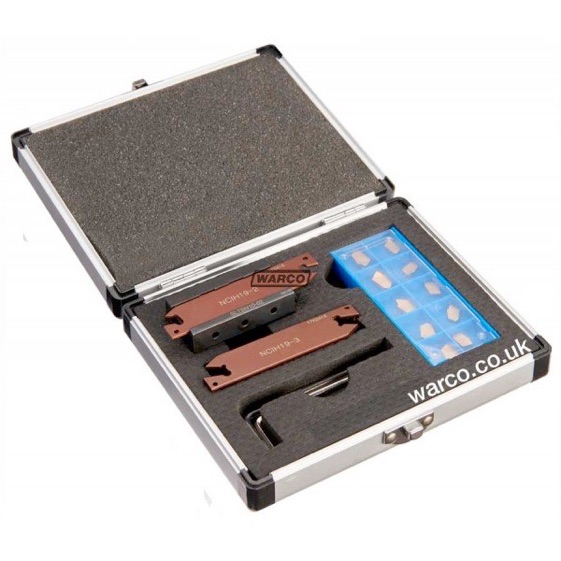

Turning tools set for metalworking with replaceable tips. Presented in an aluminium case with moulded insert to accommodate individual tools.  All new design.

Range of different sizes available to suit all metalworking lathe types.


Set includes:

Tool holder

2 x blades

10 x GTN tips

Torx tools to replace tips

Metal storage case.


Dimensions:

Tip width - 2.14mm

Maximum blade protrusion - 35mm

£52.50 Inc. VAT

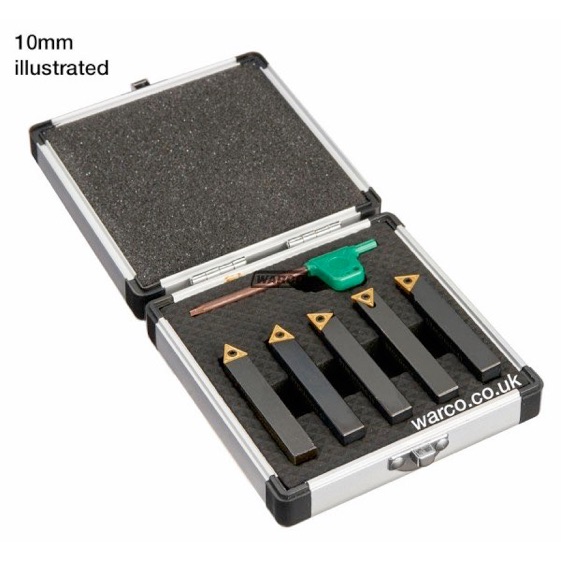

Warco Indexable Lathe Tools - 5 Piece Set

Turning tools set for with replaceable tips. With carbide titanium nitride (TIN) coating for long lasting use. Presented in an aluminium case with moulded insert to accommodate individual tools. Supplied with torx tool for tip replacing.

All new design.

£36.75 Inc. VAT

Seven and nine piece sets are also available.

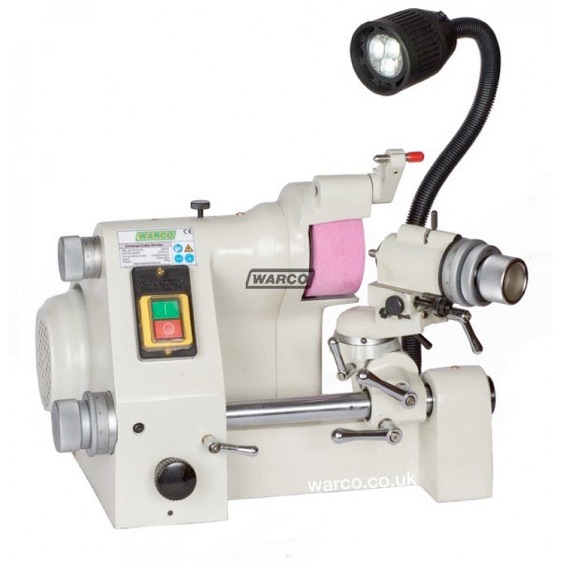

For grinding end mills, slot drills, twist drills, lathe tools and engraving tools. 24 multi angle settings. Bright LED lighting.

Heavy 45kg construction ensures vibration free operation.

Standard accessories include:

  1. Carborundum grinding wheel

  2. Diamond grinding wheel

  3. Diamond wheel dresser

  4. Twist drill grinding attachment 12mm capacity

  5. Lathe tool grinding attachment 20mm capacity

  6. Collets in 4mm, 8mm, 10mm & 12mm sizes

  7. Spare driving belt

Specification

  1. Collet capacity 4, 6, 8, 10, 12mm

  2. Taper angle 0° - 180°

  3. Relief angle 0° - 25°

  4. Spindle speed 5,000 rpm

  5. Motor power  370w

  6. Cup grinding wheel dimensions 100 x 50 x 20mm

  7. Overall dimensions (L x W x H) 450 x 500 x 400mm

  8. Voltage 240v single phase

  9. Weight 45kg

£798.00 Inc. VAT

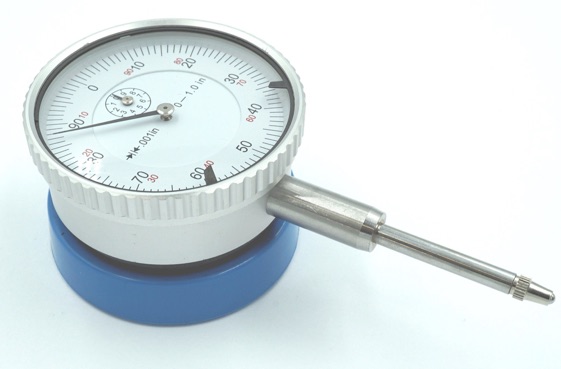

  1. Measuring range: 0-1"

  2. Graduations: 0.001"

  3. Indicator feature

  4. Accuracy meets or exceeds ANSI specifications. AGD 2 standards

  5. Main movement gears are made from high quality brass with resistance to wear and rust

  6. Spindle rack and contact points are made of hardened stainless steel, case is made from forged brass.

Tolerance Markers. Rotating bezel with clamp. Easy to read aluminum dial face with anti-glare finish. Interchangeable contact point with 4-48 thread.


  1. Reverse counter

  2. Magnetic indicator back feature

  3. Magnet screws off

  4. Powerful magnet


  1. Reading 0-100

  2. Lug Back: 1/4" Holes

  3. Dial Diameter: 2-3/8"

  4. Stem Diameter: 3/8"

  5. Accuracy (1st 2.5 Rev): +/- 0.001"

  6. Accuracy (Overall): +/- 0.002"

  7. Magnetic Indicator Back:

  8. Size 2-1/4"

  9. Direct fits 2" dial indicators

  10. Magnet screws off base, holding power: 44 lbs

  11. Diameter 9/16"

£20.39 inc VAT and UK mainland delivery.

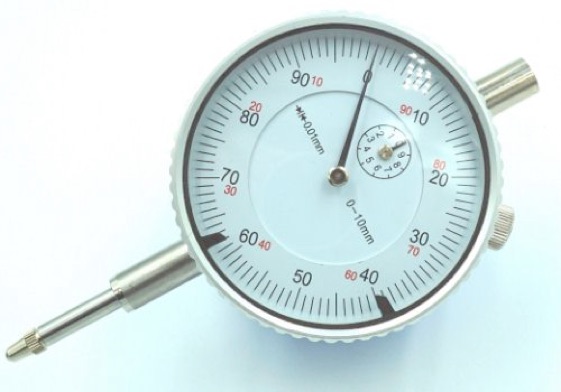

Chronos 0-10 mm x 0.01 mm Metric Dial Gauge with Flat Magnetic Back

  1. Measuring range: 0-10 mm

  2. Graduations: 0.01 mm

  3. Indicator feature

  4. Accuracy meets or exceeds ANSI specifications. AGD 2 standards

  5. Main movement gears are made from high quality brass with resistance to wear and rust

  6. Spindle rack and contact points are made of hardened stainless steel, case is made from forged brass


Tolerance markers. Rotating bezel with clamp. Easy to read aluminum dial face with anti-glare finish.

Interchangeable contact point with 4-48 thread.


  1. Reverse Counter

  2. Magnetic Indicator Back Feature

  3. Magnet screws off

  4. Powerful Magnet


  1. Reading 0-10 mm

  2. Lug Back: 1/4" Holes

  3. Dial Diameter: 2-3/8"

  4. Stem Diameter: 3/8"

  5. Accuracy (1st 2.5 Rev): +/- 0.01 mm

  6. Accuracy (Overall): +/- 0.002"

  7. Magnetic Indicator Back:

  8. Size 2-1/4"

  9. Direct fits 2" dial indicators

  10. Magnet screws off base, holding power: 44 lbs

  11. Diameter 9/16"

£20.39 inc VAT and UK mainland delivery.

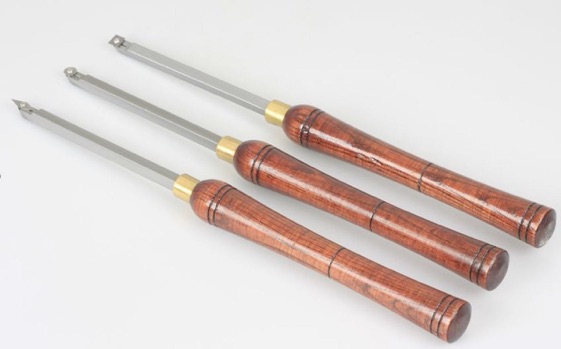

Chronos Three Piece Carbide Indexable Woodturning Tool Set

Eliminate the hassle and downtime of resharpening. When the tool dulls, simply rotate the insert for a fresh, clean cutting edge. The carbide insert will stay sharper longer compared to standard H.S.S turning tools as well, it can be replaced once all available edges have grown dull (extra carbide insert are sold separately).

Tools are CNC machined to accept the exact carbide cutter that comes installed on it.

Carbide inserts are interchangeable between the different tools

Each set includes three tools with different cutting profile inserts: round, square and diamond-shaped. Total length of turning tools is 425mm(16-3/4)". Wooden handles are 254mm (10") long from the butt of the handle to the top of the steel ferrule.

The Diamond Shaped Carbide Turning Tool is ideal for use as a parting tool, and for tight profiles, and the Square Carbide Turning Tool is ideal for flat or convex areas on spindles and pen turnings. The Round Carbide Turning Tool is ideal for producing a smooth finish on curved, concave surfaces and for general turning applications.

Supplied in a Wooden Box.

£33.60 inc VAT and UK mainland delivery.
