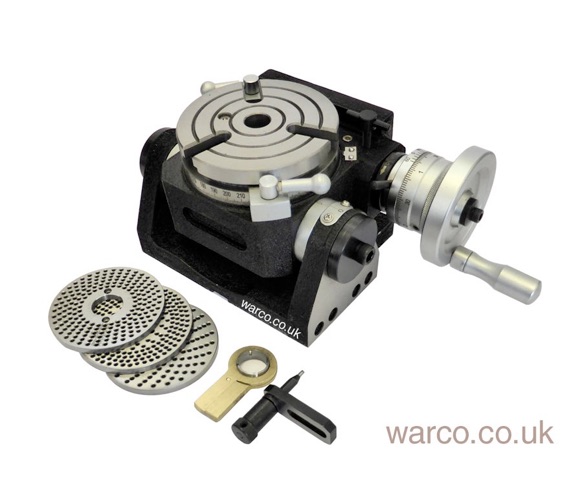

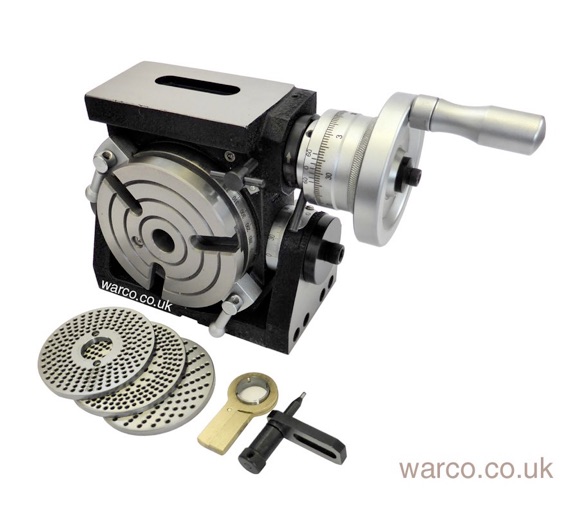

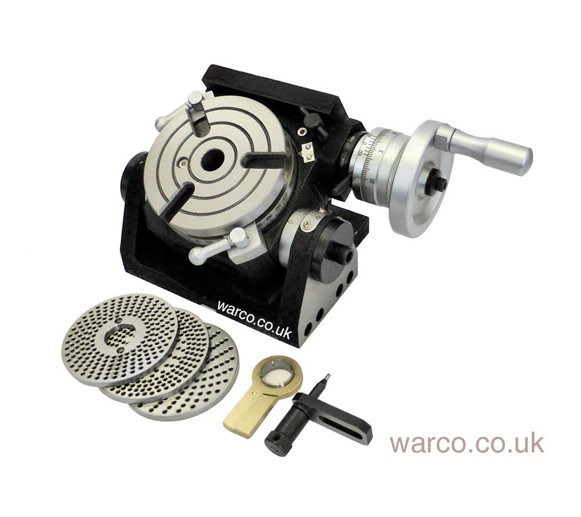

Warco has introduced a new 4” tilting, vertical and horizontal rotary table plus dividing plates. The HV4 sells at £189.00 inc VAT and mainland UK delivery.

It features:

1. •Tilt calibrated 0-90°.


2. •Positive stops to locate horizontal / vertical positions.


3. •Disengageable hand wheel for free table rotation.


4. •Lubrication points to worm and table rotation.


5. •Two position.


6. •Alloy steel worm.


7. •Cast iron gear.


8. •Micro collar graduated in steps of 1minute.


9. •One rotation of the hand wheel rotates the table 40°


Table diameter                 10mm

Base                                 175mmx 45mm

T-slot width                       11mm

Height                               120mm

Centre height (vertical)      80mm

Centre bore                        2MT

Worm gear ratio                1:90

Weight                               12.5kg

http://www.warco.co.uk
