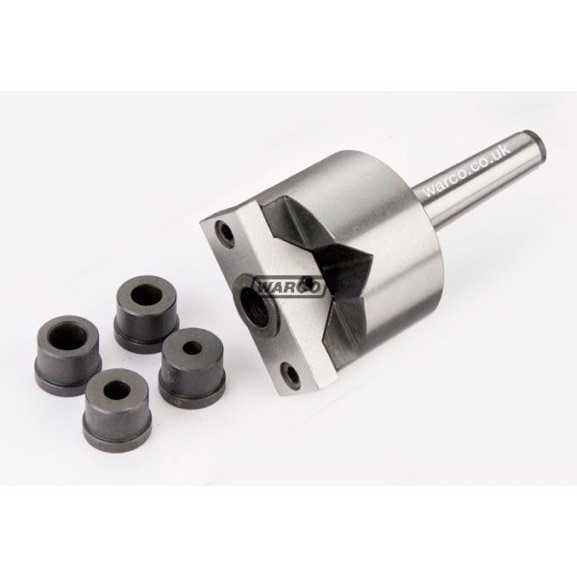

Tailstock drill adapter

At some time most model engineers will have taken a chance of drilling a hole through a round bar setting it ‘by eye’ only to find it didn’t go through the centre. This clever new lathe tailstock adapter tool from Warco does the setting up for you.

1. •Enables accurate drilling into round material - drill into a circular workpiece without the drill wandering.


2. •Supplied with hardened drill bushes.


3. •Diameter of drill accommodated (drill guide capacity) - 6, 8, 10, 12, 14, 16mm


4. •2MT arbor.


Capacity

1. •8mm to 40mm diameter


2. •8mm to 12mm in double vee


3. •14mm to 40mm with vee reversed


£33.60 inc VAT

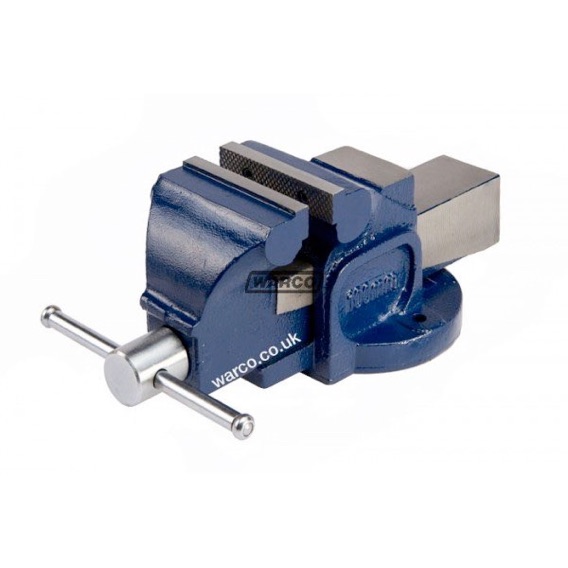

Close grain cast iron construction.

Serrated jaws for maximum grip.

Anvil behind fixed jaw.

Robust, classic design.

Dimensions

Jaw width 100mm

Maximum jaw opening 112mm

Hole fixing centres 150mm

£47.25 inc VAT

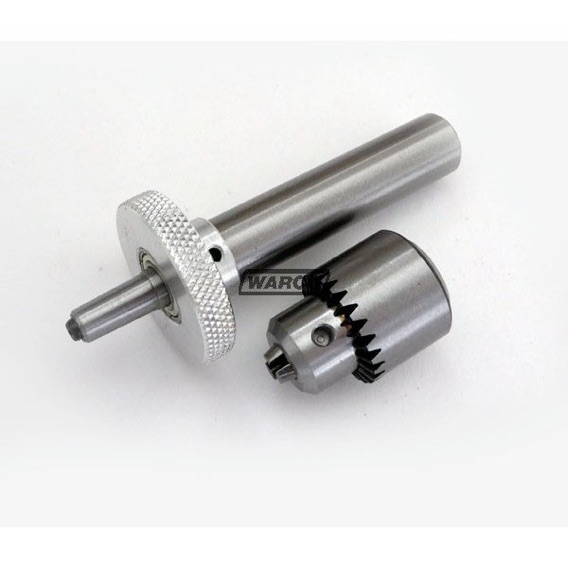

Micro / fine drill adapter

Sensitive drilling attachment for lathes and drilling machines.

Innovative precision tool.

Adapter supplied complete with high accuracy keyed drill chuck (0.3 - 4mm).

1/2" shank

JT0 drill chuck mounting

Chuck travel - 14.5mm

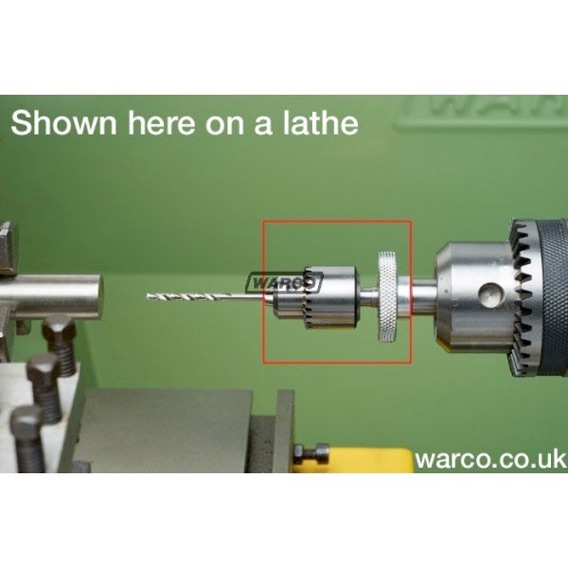

Device fits into drilling machine or lathe chuck.

Set comes complete with adapter, drill chuck and key.

Usage: Spindle is lowered as close as possible to the work piece. Gripping the knurled circumference allows the drill chuck to descend by hand operation for close tolerance sensitive operations.

£15.75 inc VAT

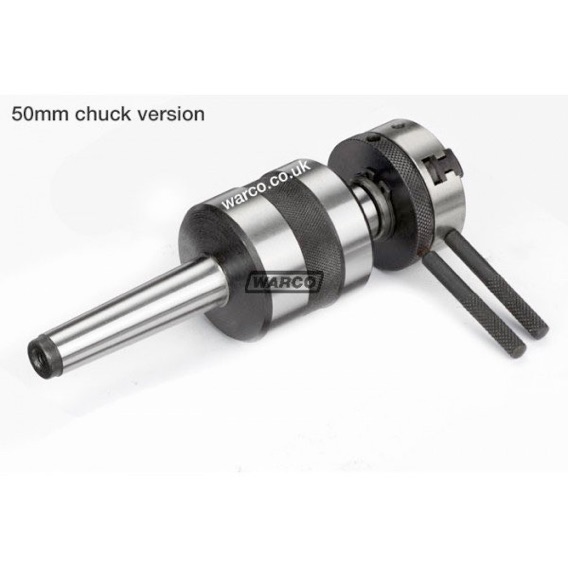

Lathe revolving chuck for tailstock MT3

This revolving chuck for the lathe tailstock enables gripping of round material with ease.

Slim 3 jaw chuck with reversible jaws.

Ideal for holding work piece which cannot be centered, for example round tubing.

Available with a choice of different chuck sizes

50mm chuck diameter (Item No. 5427)

65mm chuck diameter (Item No. 7047)

From £54.60 inc VAT

Also available for 2MT

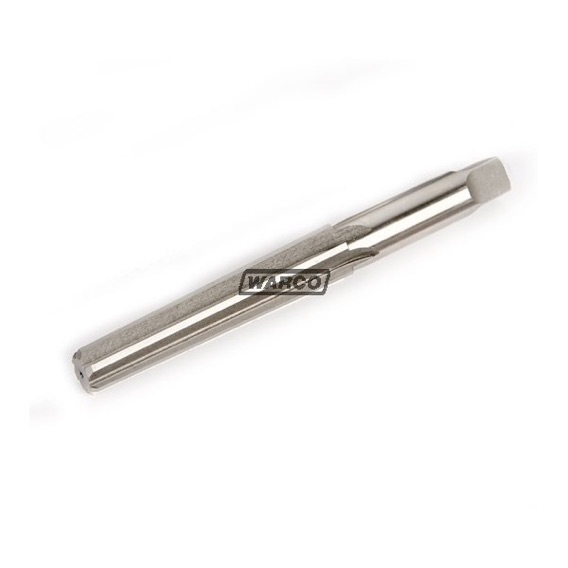

Morse taper reamer

Available in either 2 or 3 Morse taper sizes.

High speed steel.

Good for renovating damaged Morse taper spindles.

From £20.48 inc VAT

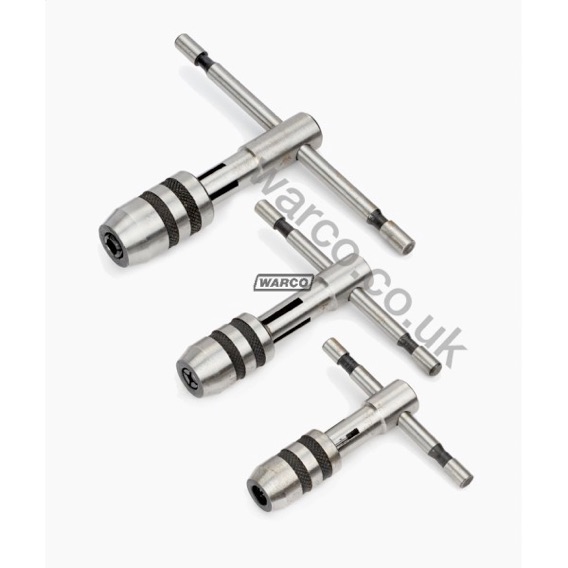

Set of spindle tap wrenches

Very useful tool enabling accurate in line tapping.

Hardened and ground.

Knurled hand operated closure.

Capacity - 1.5mm - 8mm (1/16" - 5/16" )

Tap wrench can be held in lathe tailstock or milling spindle for precise, aligned tapping.

£12.60 inc VAT

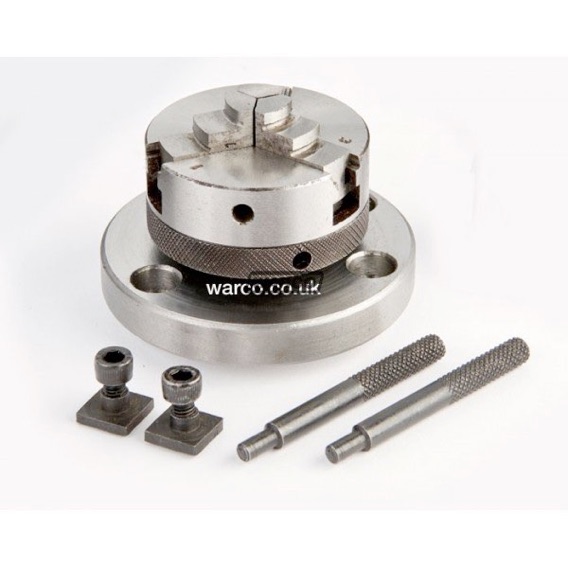

3 jaw chuck with jaws.

Chuck diameter - 50mm.

Supplied with backplate and fixings

For mounting on small rotary tables.

£30.45 inc VAT

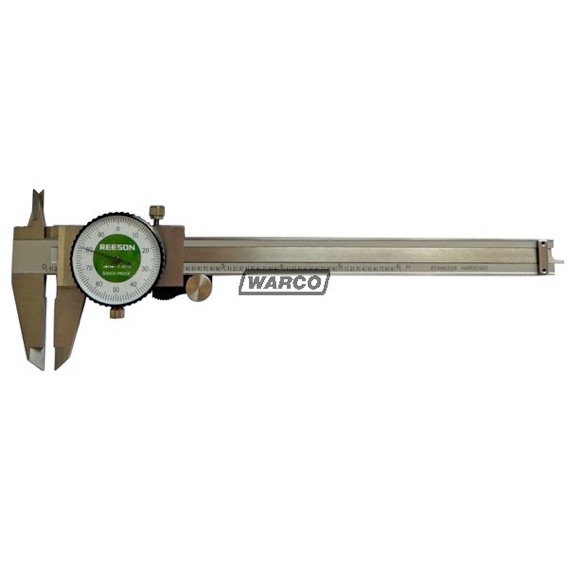

Imperial 4 - 6” and metric 100 - 150mm

From £21 inc VAT

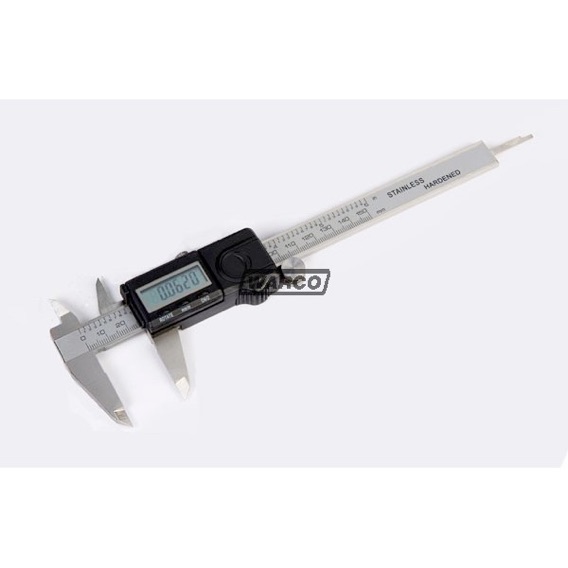

Digital vernier with flip up screen for left hand reading.

Hardened stainless steel frame

Calibrated in metric and imperial

Knurled thumb wheel for sensitive control

Inside, outside and depth measuring

Resolution - 0.01mm / 0.0005"

Reading rotates for left and/or right hand viewing

Supplied with 3v lithium battery.

Complete with storage case.

£31.50 inc VAT

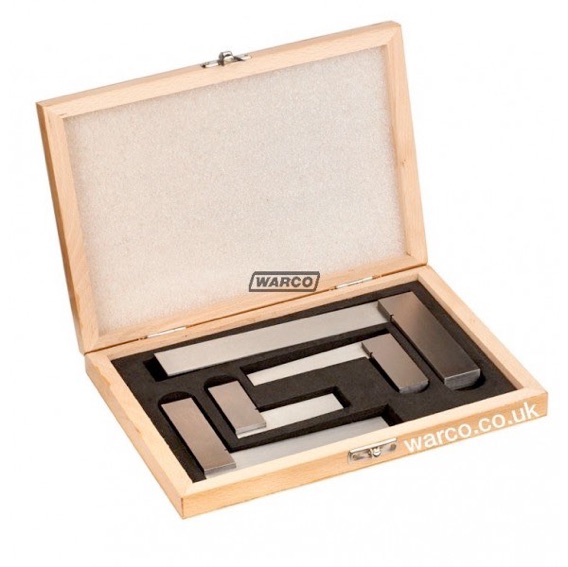

Supplied complete in wooden storage box.

Hardened and ground

Four squares included in sizes 50mm / 75mm / 100mm / 150mm.

£26.25 inc VAT
