SIMPLE OSCILLATING STEAM ENGINE

By Julius de Waal

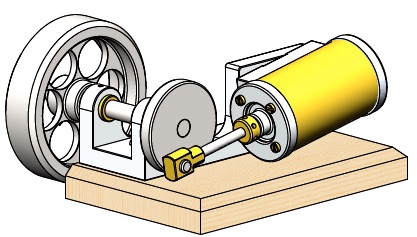

A neat and simple single cylinder oscillating steam engine.

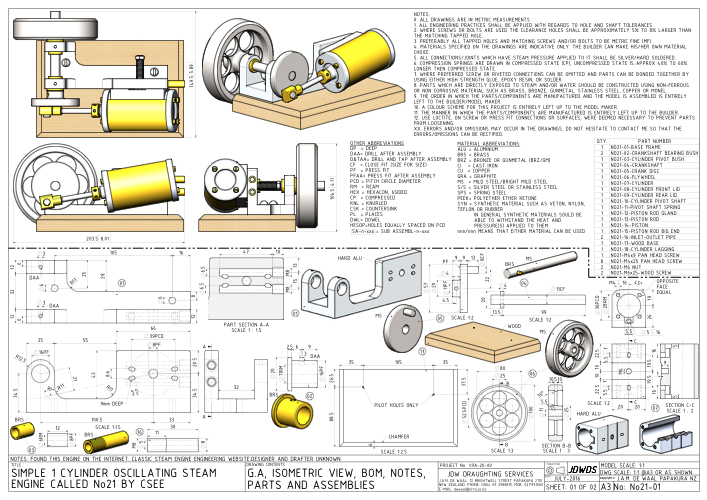

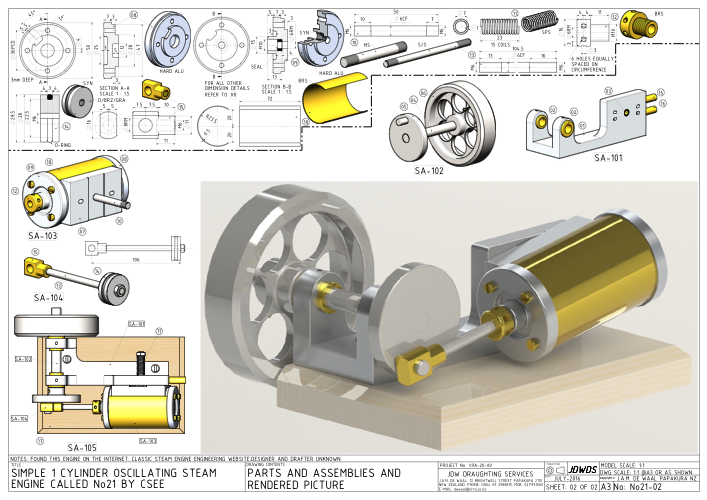

Click on drawings to download - for personal use only.

Pat Jorgensen’s original drawings in Imperial are at:

https://www.classicsteamengineering.com/threads/drawings-for-bob-jorgensens-no-21-oscillating-steam-engine.947/
