SHAY B TYPE

LOGGING LOCO

By Stewart Jackson

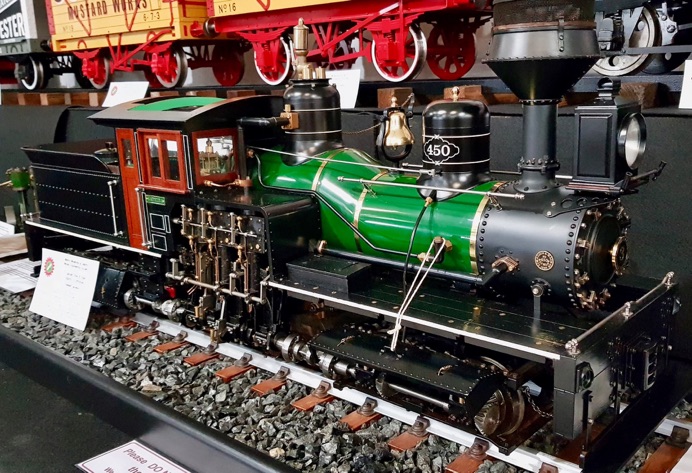

This super model of the Shay B type geared locomotive in 5” gauge was shown by Stewart Jackson at the 2019 Midlands exhibition. The Shay locomotive was the most widely used geared steam locomotive, and were built to the patents of Ephraim Shay (1839–1916) who had been a schoolteacher, a clerk in a Civil War hospital, a civil servant, a logger, a merchant, a railway owner, and an inventor who lived in Michigan.

In the 1860s he wanted a better way to move logs than on winter snow sleds. He built his own tramway in 1875, on 2 ft 2 in gauge track on wooden ties, allowing him to log all year round. Two years later he developed the idea of having an engine sit on a flat car with a boiler, gears, and trucks that could pivot. Shay locomotives were often known as sidewinders or stemwinders for their side-mounted drive shafts. Most were built for use in the United States, but many were exported, to about 30 countries, either by the builders, Lima, or after they had reached the end of their usefulness in the US.

No less than 118 survive.

Inspiration for Shay builders is the great book, Building the Shay, by Kozo Hiraoka who sets out the build in fine detail used on his experience of building the model in 3.5” gauge (in his flat - apartment) using stock materials and no castings.

It has also been adapted to the large gauges.
