BUILDING THE SIMPLEX PETROL ENGINE

Part 1 by Phil Procter

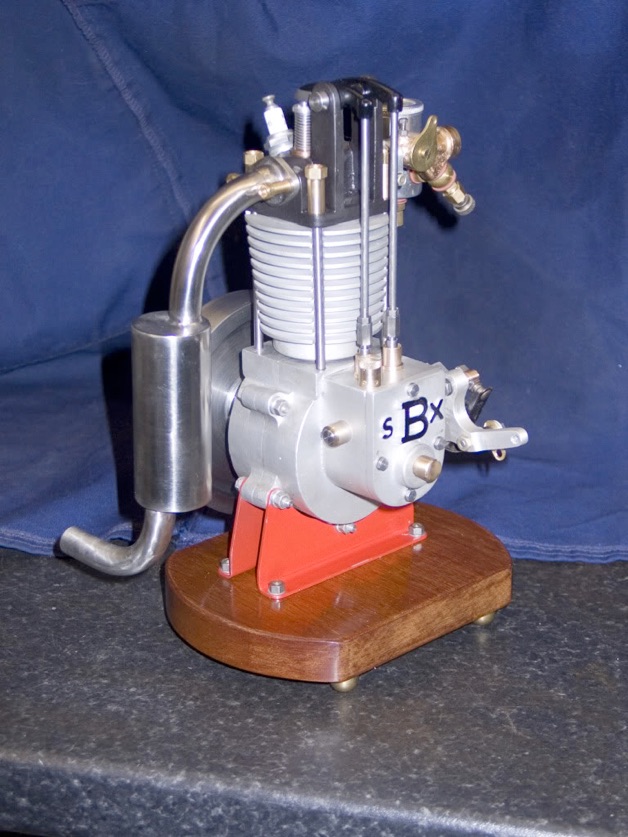

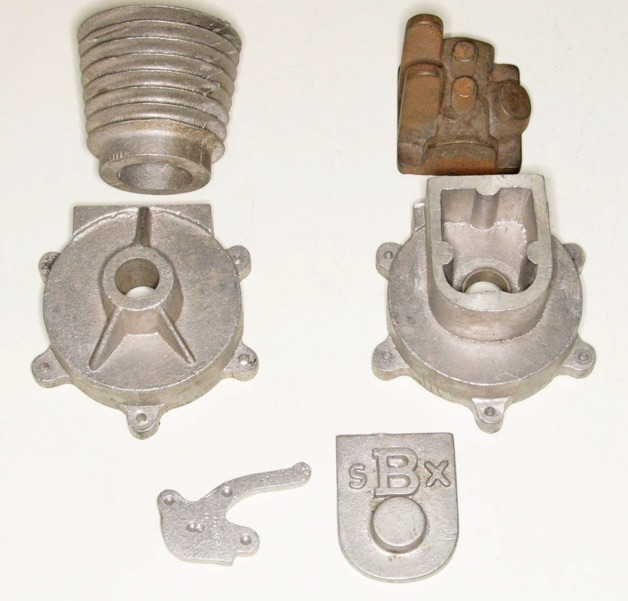

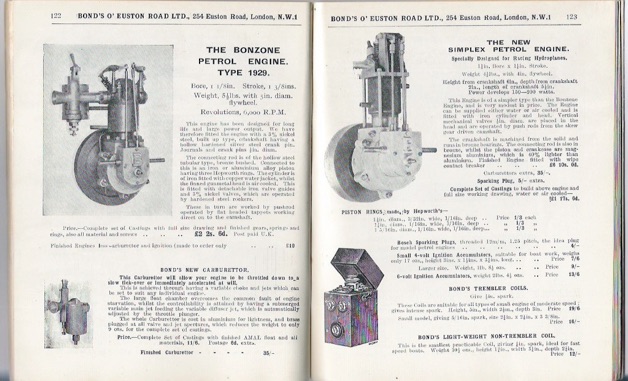

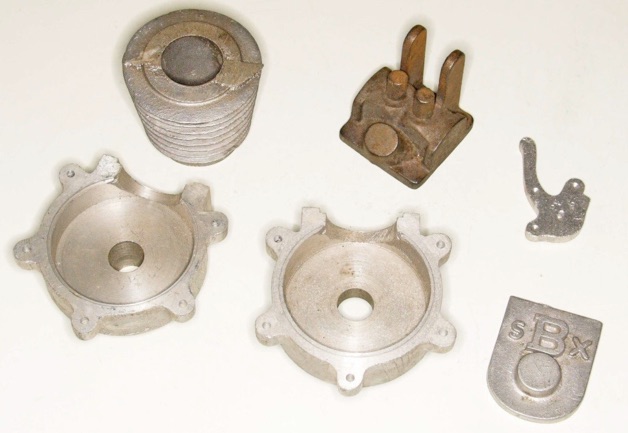

Here are the castings as purchased in an assorted box of junk on ebay.

I was also lucky to find the drawings and the pair of skew gears needed.

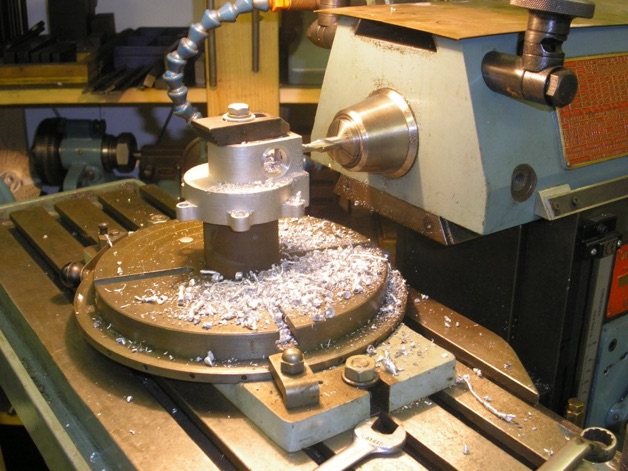

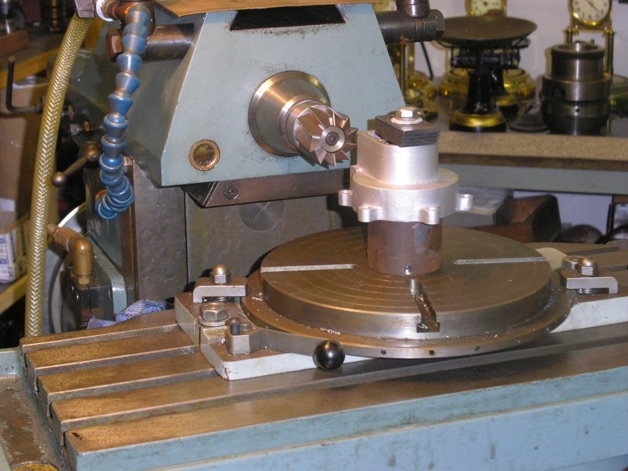

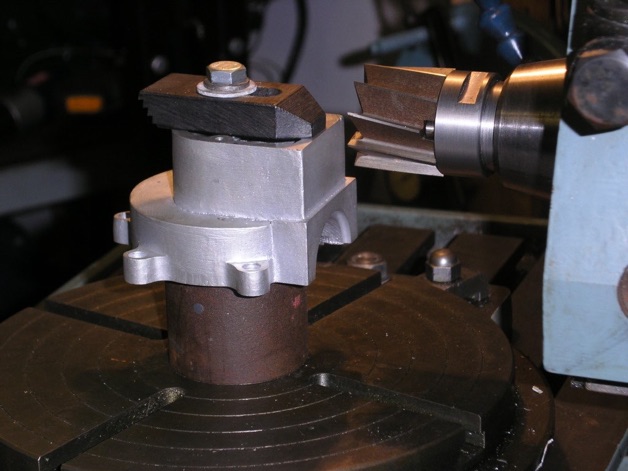

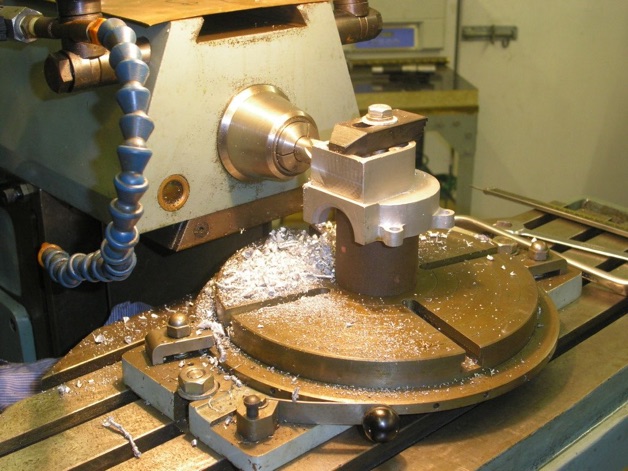

A start was made on the crankshaft. Set up on a rigid post mounted on my own design of low height indexing table, it allowed a few faces and holes to be done with minimal re-setting.

.

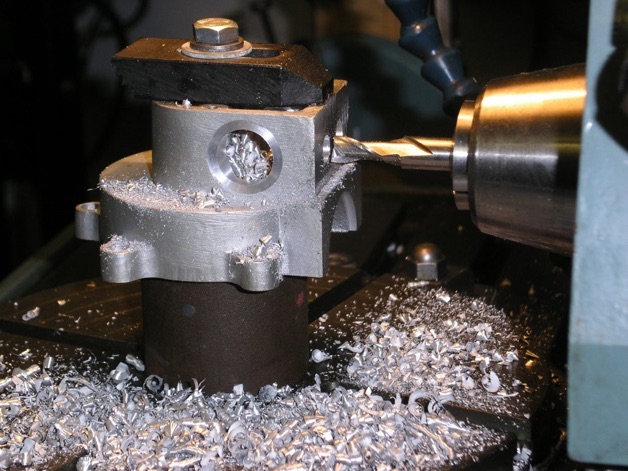

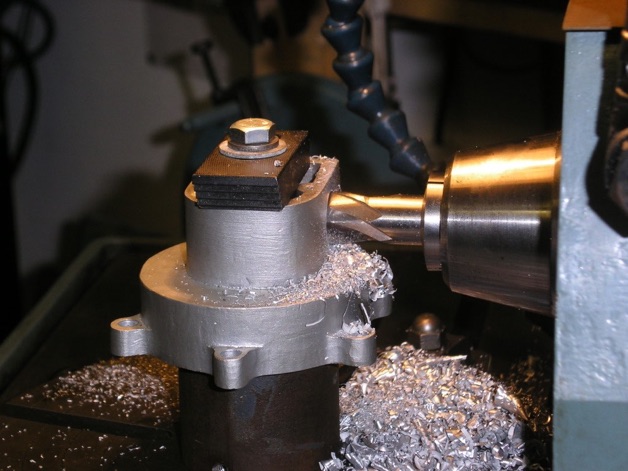

And using a boring and facing head to machine the register in the top face for the cylinder.


Part one here Part two Part three  Part four  Part five  Part six  Part seven

See also engine description.
