DECAUVILLE 0-2-0T

GAUGE 1 LOCO PART 2/2

By Julius de Waal

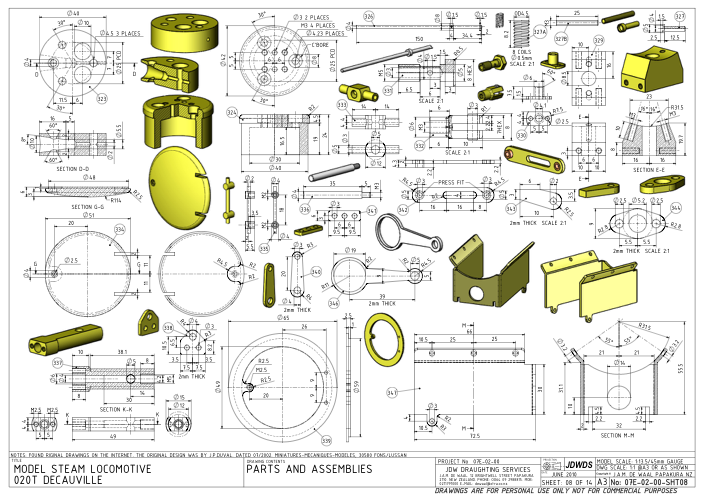

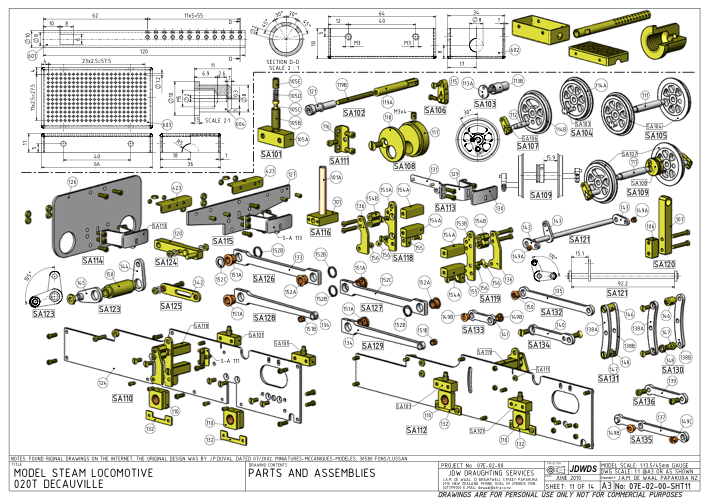

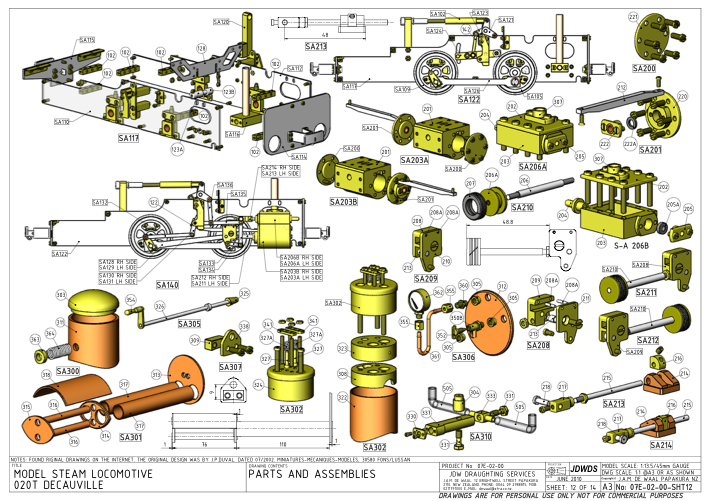

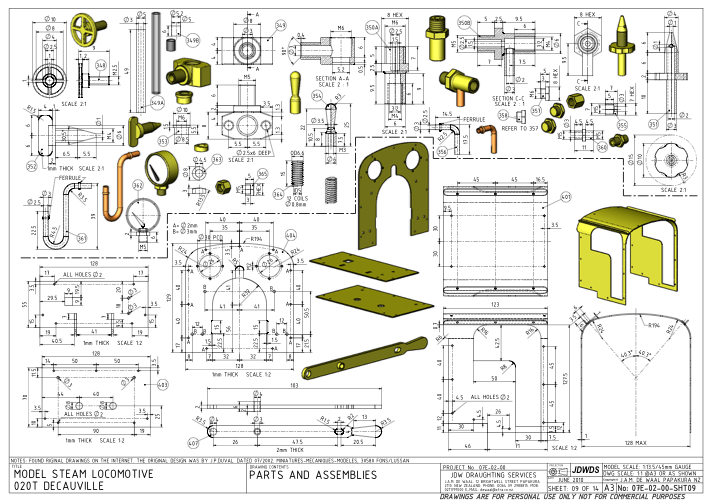

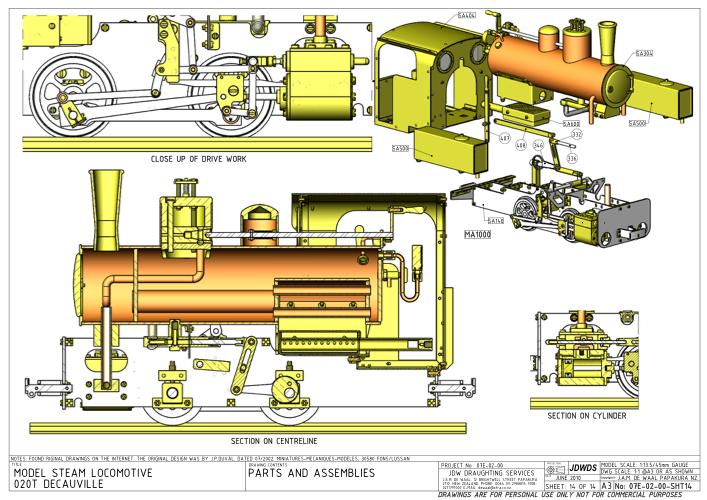

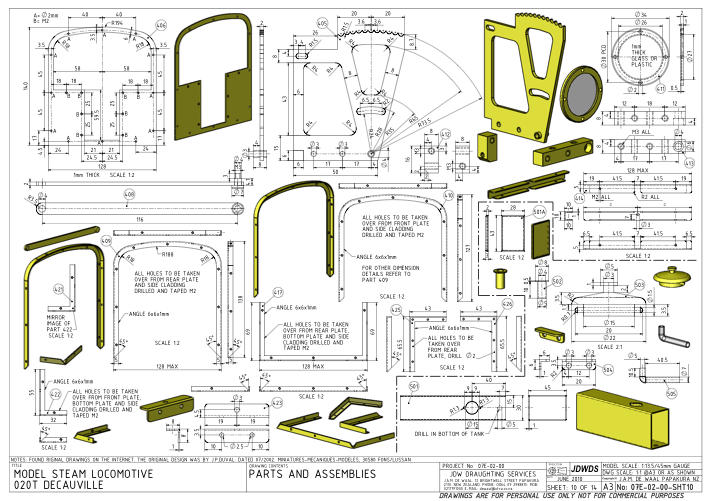

Julius’ Decauville drawings.

Click on drawings to download.

For personal use only.


Although drawings reproduce well on this website, they are even better as useable saved downloads.


Please let the editor know if you are building one of these or other engines to Julius’ designs.

Part one here.


Description for building a 2.5” gauge version can be found here.
