A range of new measuring equipment by Dasqua has been introduced by Chronos. First is a universal bevel protractor with fine adjustment. Made from stainless steel it includes:

• Clear graduations and numbering of the scale disc 4x90°.

• Vernier and scale disc are on a common plane thus

guaranteeing error-free,parallax-free reading.

• With magnifying glass for easier and faster reading.

• Measuring disc anti-glare chrome-plated.

• With additional angle plate.

• The adjustment of the base plate is 4x90°.

• Hardened measuring edge.

• With fine setting by knurled screw.

Blades are 150 mm / 200 mm / 300 mm

£46.81 inc VAT and mainland UK delivery

1. •Graduated arc and measuring arm made of stainless steel. All measuring edges are lapped.


2. •The moveable measuring arm can be clamped with a knurled screw


3. •Measuring Range 180 degree


4. •Accuracy 0.3 degrees


5. •Retaining function : The measurement value can be fixed in any position


6. •Measuring range 150 x 200 mm


7. •Graduation 0.05"


8. •Diameter of protractor 158 mm


9. •Length of blade 211.5 mm


£30.84 inc VAT and mainland UK delivery.

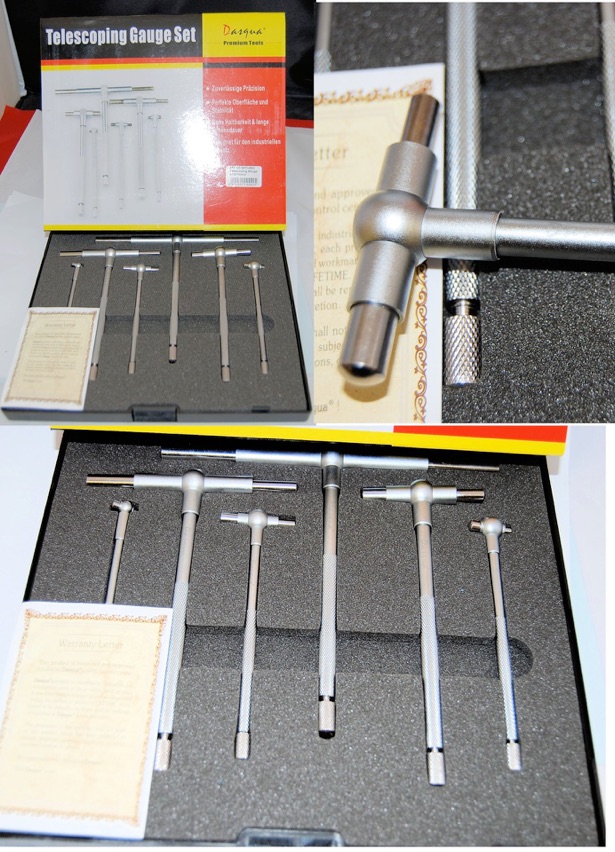

8mm - 15omm  up to 150mm depth

8mm - 150mm long reach

5/16 - 6” up to 6” depth

5/16 - 6” long reach

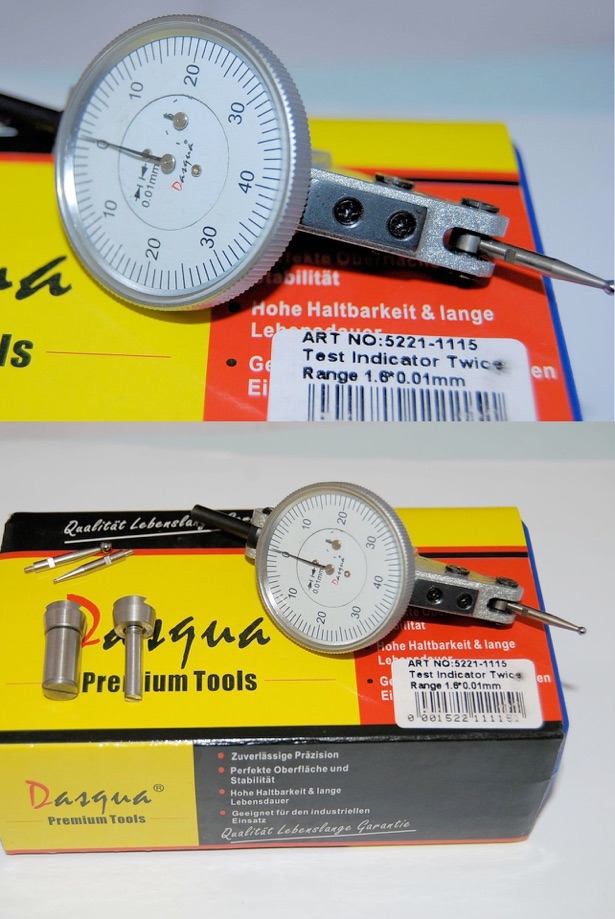

It has also introduced imperial and metric ‘dial test indicators with twice the range’. The imperial one features:

• Easy-to-read tilted dial.

• With extra contact point 0.04" & 0.12".

• High precision contact point.

• 210° swivel arc.

• Jeweled bearing.

• revolution counter.

• Automatic reversal

Measuring range - 0.06"

Reading - 0.0005"

Dial - 1 1/2 " dia

Dial reading - 0-15-0

£46.08 inc VAT and mainland UK delivery.

Measuring range - 1.6 mm

Reading - 0.01 mm

Dial - 35 mm dia

Dial reading - 0-40-0

£47.28 inc VAT and mainland UK delivery.
